Packets extractor. More...

Inheritance diagram for PIPacketExtractor:

Public Types
enum	SplitMode { None, Header, Footer, HeaderAndFooter, Size, Timeout }
	Extract algorithms. More...

Public Types inherited from PIIODevice
enum	DeviceMode { ReadOnly = 0x01, WriteOnly = 0x02, ReadWrite = 0x03 }
	Open modes for PIIODevice. More...

enum	DeviceOption { BlockingRead = 0x01, BlockingWrite = 0x02 }
	Options for PIIODevice, works with some devices. More...

enum	DeviceInfoFlag { Sequential = 0x01, Reliable = 0x02 }
	Characteristics of PIIODevice subclass. More...

Public Types inherited from PIThread
enum	Priority { piLowerst, piLow, piNormal, piHigh, piHighest }
	Priority of thread. More...

Public Member Functions
	PIPacketExtractor (PIIODevice *device_=0, SplitMode mode=None)
	Contructs extractor with child device "device_" and extract algorithm "mode".

PIIODevice *	device ()
	Returns child device.

void	setDevice (PIIODevice *device_)
	Set child device to "device_".

int	bufferSize () const
	Returns buffer size.

void	setBufferSize (int new_size)
	Set buffer size to "new_size" bytes, should be at least greater than whole packet size.

void	setSplitMode (SplitMode mode)
	Set extract algorithm.

void	setPayloadSize (int size)
	Set payload size, used for PIPacketExtractor::Header and PIPacketExtractor::Footer algorithms.

void	setHeader (const PIByteArray &data)
	Set header data, used for PIPacketExtractor::Header and PIPacketExtractor::HeaderAndFooter algorithms.

void	setFooter (const PIByteArray &data)
	Set footer data, used for PIPacketExtractor::Footer and PIPacketExtractor::HeaderAndFooter algorithms.

void	setPacketSize (int size)
	Set packet size, used for PIPacketExtractor::Size algorithm.

void	setTimeout (double msecs)
	Set timeout in milliseconds, used for PIPacketExtractor::Timeout algorithm.

SplitMode	splitMode () const
	Returns current extract algorithm.

int	payloadSize () const
	Returns current payload size, used for PIPacketExtractor::Header and PIPacketExtractor::Footer algorithms.

PIByteArray	header () const
	Returns current header data, used for PIPacketExtractor::Header and PIPacketExtractor::HeaderAndFooter algorithms.

PIByteArray	footer () const
	Returns current footer data, used for PIPacketExtractor::Footer and PIPacketExtractor::HeaderAndFooter algorithms.

int	packetSize () const
	Returns current packet size, used for PIPacketExtractor::Size algorithm.

double	timeout () const
	Returns current timeout in milliseconds, used for PIPacketExtractor::Timeout algorithm.

ullong	missedBytes () const
	Returns missed by validating functions bytes count.

const ullong *	missedBytes_ptr () const
	Returns pointer to missedBytes() count. Useful for output to PIConsole.

Public Member Functions inherited from PIIODevice
	PIIODevice ()
	Constructs a empty PIIODevice.

	PIIODevice (const PIString &path, DeviceMode mode=ReadWrite)
	Constructs a PIIODevice with path and mode. More...

DeviceMode	mode () const
	Current open mode of device.

void	setMode (DeviceMode m)
	Set open mode of device.

DeviceOptions	options () const
	Current device options.

bool	isOptionSet (DeviceOption o) const
	Current device option "o" state.

void	setOptions (DeviceOptions o)
	Set device options.

bool	setOption (DeviceOption o, bool yes=true)
	Set device option "o" to "yes" and return previous state.

DeviceInfoFlags	infoFlags () const
	Returns device characteristic flags.

PIString	path () const
	Current path of device.

void	setPath (const PIString &path)
	Set path of device.

bool	isReadable () const
	Return true if mode is ReadOnly or ReadWrite.

bool	isWriteable () const
	Return true if mode is WriteOnly or ReadWrite.

bool	isOpened () const
	Return true if device is successfully opened.

bool	isClosed () const
	Return true if device is closed.

virtual bool	canRead () const
	Return true if device can read now.

virtual bool	canWrite () const
	Return true if device can write now.

void	setReopenEnabled (bool yes=true)
	Set execution of open enabled while threaded read on closed device.

void	setReopenTimeout (int msecs)
	Set timeout in milliseconds between open tryings if reopen is enabled.

bool	isReopenEnabled () const
	Return reopen enable.

int	reopenTimeout ()
	Return reopen timeout.

void	setThreadedReadSlot (ReadRetFunc func)
	Set "threaded read slot". More...

void	setThreadedReadData (void *d)
	Set custom data that will be passed to "threaded read slot".

void	setThreadedReadBufferSize (int new_size)
	Set size of threaded read buffer. More...

int	threadedReadBufferSize () const
	Return size of threaded read buffer.

const uchar *	threadedReadBuffer () const
	Return content of threaded read buffer.

void *	threadedReadData () const
	Return custom data that will be passed to "threaded read slot".

bool	isThreadedRead () const
	Return true if threaded read is started.

void	startThreadedRead ()
	Start threaded read.

void	startThreadedRead (ReadRetFunc func)
	Start threaded read and assign "threaded read slot" to "func".

void	stopThreadedRead ()
	Stop threaded read.

bool	isThreadedWrite () const
	Return true if threaded write is started.

void	startThreadedWrite ()
	Start threaded write.

void	stopThreadedWrite ()
	Stop threaded write.

void	clearThreadedWriteQueue ()
	Clear threaded write task queue.

void	start ()
	Start both threaded read and threaded write.

void	stop (bool wait=false)
	Stop both threaded read and threaded write and if "wait" block until both threads are stop.

int	read (void *read_to, int max_size)
	Read from device maximum "max_size" bytes to "read_to".

PIByteArray	read (int max_size)
	Read from device maximum "max_size" bytes and return them as PIByteArray.

int	write (const void *data, int max_size)
	Write maximum "max_size" bytes of "data" to device.

int	write (const PIByteArray &data)
	Write "data" to device.

PIByteArray	readForTime (double timeout_ms)
	Read from device for "timeout_ms" milliseconds and return readed data as PIByteArray. Timeout should to be greater than 0.

ullong	writeThreaded (const void *data, int max_size)
	Add task to threaded write queue and return task ID.

ullong	writeThreaded (const PIByteArray &data)
	Add task to threaded write queue and return task ID.

bool	configure (const PIString &config_file, const PIString &section, bool parent_section=false)
	Configure device from section "section" of file "config_file", if "parent_section" parent section also will be read.

PIString	constructFullPath () const
	Reimplement to construct full unambiguous string, describes this device, default returns fullPathPrefix() + "://" + path()

void	configureFromFullPath (const PIString &full_path)
	Reimplement to configure your device with parameters of full unambiguous string. Default implementation does nothing.

bool	open ()
	Open device.

bool	open (const PIString &_path)
	Open device with path "path".

bool	close ()
	Close device.

virtual void	flush ()
	Immediate write all buffers.

void	opened ()
	Raise if succesfull open.

void	closed ()
	Raise if succesfull close.

void	threadedReadEvent (uchar *readed, int size)
	Raise if read thread succesfull read some data.

void	threadedWriteEvent (ullong id, int written_size)
	Raise if write thread successfull write some data of task with ID "id".

Public Member Functions inherited from PIThread
	PIThread (void *data, ThreadFunc func, bool startNow=false, int loop_delay=-1)
	Contructs thread with custom data "data", external function "func" and main loop delay "loop_delay".

	PIThread (bool startNow=false, int loop_delay=-1)
	Contructs thread with main loop delay "loop_delay".

void	setData (void *d)
	Set common data passed to external function.

void	setSlot (ThreadFunc func)
	Set external function that will be executed after every run()

void	setPriority (PIThread::Priority prior)
	Set priority of thread.

void *	data () const
	Returns common data passed to external function.

PIThread::Priority	priority () const
	Return priority of thread.

bool	isRunning () const
	Return `true` if thread is running.

void	needLockRun (bool need)
	Set necessity of lock every run with internal mutex.

PIMutex &	mutex ()
	Returns internal mutex.

llong	tid () const
	Returns thread ID.

bool	start (int timer_delay)
	Start thread. More...

bool	startOnce ()
	Start thread without internal loop. More...

bool	startOnce (ThreadFunc func)
	Start thread without internal loop. More...

void	stop (bool wait)
	Stop thread. More...

void	terminate ()
	Strongly stop thread. More...

bool	waitForStart (int timeout_msecs)
	Wait for thread start. More...

bool	waitForFinish (int timeout_msecs)
	Wait for thread finish. More...

void	lock ()
	Lock internal mutex.

void	unlock ()
	Unlock internal mutex.

void	started ()
	Raise on thread start.

void	stopped ()
	Raise on thread stop.

Public Member Functions inherited from PIObject
	PIObject (const PIString &name=PIString())
	Contructs PIObject with name "name".

PIString	name () const
	Returns object name.

virtual const char *	className () const
	Returns object class name.

virtual const char *	parentClassName () const
	Returns parent object class name.

bool	debug () const
	Return if debug of this object is active.

void	setName (const PIString &name)
	Set object name.

void	setDebug (bool debug)
	Set object debug active.

const PIMap< PIString, PIVariant > &	properties () const
	Returns properties of the object.

int	propertiesCount () const
	Returns properties count of the object.

PIVariant	property (const PIString &name) const
	Returns property with name "name".

void	setProperty (const PIString &name, const PIVariant &value)
	Set property with name "name" to "value". If there is no such property in object it will be added.

bool	isPropertyExists (const PIString &name) const
	Returns if property with name "name" exists.

Protected Member Functions
virtual bool	validateHeader (uchar src, uchar rec, int size)
	Function to validate header. More...

virtual bool	validateFooter (uchar src, uchar rec, int size)
	Function to validate footer. More...

virtual bool	validatePayload (uchar *rec, int size)
	Function to validate payload. More...

Protected Member Functions inherited from PIIODevice
virtual bool	init ()
	Function executed before first openDevice() or from constructor.

virtual bool	configureDevice (const void e_main, const void e_parent=0)
	Reimplement to configure device from entries "e_main" and "e_parent", cast arguments to PIConfig::Entry*.

virtual void	configureFromFullPathDevice (const PIString &full_path)
	Reimplement to configure your device with parameters of full unambiguous string. Default implementation does nothing.

virtual void	optionsChanged ()
	Reimplement to apply new device options.

virtual void	threadedReadBufferSizeChanged ()
	Reimplement to apply new threadedReadBufferSize()

Protected Member Functions inherited from PIObject
PIObject *	emitter () const
	Returns PIObject* which has raised an event. This value is correct only in definition of some event handler.

void	deleted ()
	Raise before object delete. More...

Events
void	packetReceived (uchar *data, int size)
	Raise on successfull packetValidate() function.

Additional Inherited Members
Static Public Member Functions inherited from PIIODevice
static PIIODevice *	createFromFullPath (const PIString &full_path)
	Try to determine suitable device, create new one, configure it with configureFromFullPath() and returns it. More...

Static Public Member Functions inherited from PIObject
static void	piDisconnect (PIObject *src, const PIString &sig)
	Disconnect object "src" from all connections with event name "sig".

static void	piDisconnect (PIObject *src)
	Disconnect object "src" from all connections, i.e. all connections where object "src" is emitter.

static PIObject *	findByName (const PIString &name)
	Returns PIObject* with name "name" or 0, if there is no object found.

Public Attributes inherited from PIIODevice
bool	reopenEnabled
	setReopenEnabled, default "true"

int	reopenTimeout
	setReopenTimeout in ms, default 1000

int	threadedReadBufferSize
	setThreadedReadBufferSize in bytes, default 4096

Related Functions inherited from PIIODevice
template<typename T >
T	readDeviceSetting (const PIString &name, const T &def, const PIConfig::Entry em, const PIConfig::Entry ep)
	Service function. useful for configuring devices. More...

#define	REGISTER_DEVICE(class)
	Use this macro to enable automatic creation instances of your class with createFromFullPath() function.

#define	PIIODEVICE(class)
	Use this macro instead of PIOBJECT when describe your own PIIODevice.

Related Functions inherited from PIObject
#define	piCoutObj
	Macro used for conditional (piDebug and PIObject::debug()) output to PICout for subclasses of PIObject.

#define	PIOBJECT(name)
	you should use this macro after class declaration to use EVENT and EVENT_HANDLER and correct piCoutObj output

#define	PIOBJECT_SUBCLASS(name, parent)
	you should use this macro after class declaration to use EVENT and EVENT_HANDLER of parent class, and scopeList()

#define	EVENT_HANDLER0(ret, name) ret name()
	declare event handler "event" with name "name" and return type "ret", ret name()

#define	EVENT_HANDLER1(ret, name, type0, var0) ret name(type0 var0)
	declare event handler "event" with name "name" and return type "ret", ret name(type0 var0)

#define	EVENT_HANDLER2(ret, name, type0, var0, type1, var1) ret name(type0 var0, type1 var1)
	declare event handler "event" with name "name" and return type "ret", ret name(type0 var0, type1 var1)

#define	EVENT_HANDLER3(ret, name, type0, var0, type1, var1, type2, var2) ret name(type0 var0, type1 var1, type2 var2)
	declare event handler "event" with name "name" and return type "ret", ret name(type0 var0, type1 var1, type2 var2)

#define	EVENT_HANDLER4(ret, name, type0, var0, type1, var1, type2, var2, type3, var3) ret name(type0 var0, type1 var1, type2 var2, type3 var3)
	declare event handler "event" with name "name" and return type "ret", ret name(type0 var0, type1 var1, type2 var2, type3 var3)

#define	EVENT_HANDLER EVENT_HANDLER0
	EVENT_HANDLER is synonym of EVENT_HANDLER0.

#define	EVENT_VHANDLER0(ret, name) virtual ret name()
	declare virtual event handler "event" with name "name" and return type "ret", virtual ret name()

#define	EVENT_VHANDLER1(ret, name, type0, var0) virtual ret name(type0 var0)
	declare virtual event handler "event" with name "name" and return type "ret", virtual ret name(type0 var0)

#define	EVENT_VHANDLER2(ret, name, type0, var0, type1, var1) virtual ret name(type0 var0, type1 var1)
	declare virtual event handler "event" with name "name" and return type "ret", virtual ret name(type0 var0, type1 var1)

#define	EVENT_VHANDLER3(ret, name, type0, var0, type1, var1, type2, var2) virtual ret name(type0 var0, type1 var1, type2 var2)
	declare virtual event handler "event" with name "name" and return type "ret", virtual ret name(type0 var0, type1 var1, type2 var2)

#define	EVENT_VHANDLER4(ret, name, type0, var0, type1, var1, type2, var2, type3, var3) virtual ret name(type0 var0, type1 var1, type2 var2, type3 var3)
	declare virtual event handler "event" with name "name" and return type "ret", virtual ret name(type0 var0, type1 var1, type2 var2, type3 var3)

#define	EVENT_VHANDLER EVENT_VHANDLER0
	EVENT_VHANDLER is synonym of EVENT_VHANDLER0.

#define	EVENT0(name) void name();
	declare event "event" with name "name", void name();

#define	EVENT1(name, type0, var0) void name(type0 var0);
	declare event "event" with name "name", void name(type0 var0);

#define	EVENT2(name, type0, var0, type1, var1) void name(type0 var0, type1 var1);
	declare event "event" with name "name", void name(type0 var0, type1 var1);

#define	EVENT3(name, type0, var0, type1, var1, type2, var2) void name(type0 var0, type1 var1, type2 var2);
	declare event "event" with name "name", void name(type0 var0, type1 var1, type2 var2);

#define	EVENT4(name, type0, var0, type1, var1, type2, var2, type3, var3) void name(type0 var0, type1 var1, type2 var2, type3 var3);
	declare event "event" with name "name", void name(type0 var0, type1 var1, type2 var2, type3 var3);

#define	EVENT EVENT0
	EVENT is synonym of EVENT0.

#define	CONNECTU(src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler". "Event" and "handler" must has equal argument lists.

#define	CONNECTU_QUEUED(src, event, dest, handler, performer)
	connect event "event" from object "src" to event handler "handler". Event handler will be executed by "performer". "Event" and "handler" must has equal argument lists.

#define	CONNECT0(ret, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" with check of event and handler exists

#define	CONNECT1(ret, type0, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" with check of event and handler exists

#define	CONNECT2(ret, type0, type1, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" with check of event and handler exists

#define	CONNECT3(ret, type0, type1, type2, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" with check of event and handler exists

#define	CONNECT4(ret, type0, type1, type2, type3, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" with check of event and handler exists

#define	CONNECT CONNECT0
	CONNECT is synonym of CONNECT0.

#define	WEAK_CONNECT0(ret, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" without check of event exists

#define	WEAK_CONNECT1(ret, type0, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" without check of event exists

#define	WEAK_CONNECT2(ret, type0, type1, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" without check of event exists

#define	WEAK_CONNECT3(ret, type0, type1, type2, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" without check of event exists

#define	WEAK_CONNECT4(ret, type0, type1, type2, type3, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" without check of event exists

#define	WEAK_CONNECT WEAK_CONNECT0
	WEAK_CONNECT is synonym of WEAK_CONNECT0.

#define	DISCONNECT0(ret, src, event, dest, handler)
	piDisconnect event "event" from object "src" from event handler "handler" with return type "ret" from object "dest"

#define	DISCONNECT1(ret, type0, src, event, dest, handler)
	piDisconnect event "event" from object "src" from event handler "handler" with return type "ret" from object "dest"

#define	DISCONNECT2(ret, type0, type1, src, event, dest, handler)
	piDisconnect event "event" from object "src" from event handler "handler" with return type "ret" from object "dest"

#define	DISCONNECT3(ret, type0, type1, type2, src, event, dest, handler)
	piDisconnect event "event" from object "src" from event handler "handler" with return type "ret" from object "dest"

#define	DISCONNECT4(ret, type0, type1, type2, type3, src, event, dest, handler)
	piDisconnect event "event" from object "src" from event handler "handler" with return type "ret" from object "dest"

#define	DISCONNECT DISCONNECT0
	DISCONNECT is synonym of DISCONNECT0.

#define	HANDLER(handler)
	Returns pointer to events handler "handler".

Detailed Description

Packets extractor.

Synopsis

This class implements packet recognition by various algorithms and custom validating from data stream. Stream is formed from child PIIODevice passed from contructor or with function setDevice().

Principle of work

PIPacketExtractor works with child PIIODevice. read and write functions directly call child device functions. You should start threaded read of extractor (not child device) to proper work. Extractor read data from child device, try to detect packet from readed data and raise packetReceived() event on success.

Algorithms

There are 6 algorithms:

PIPacketExtractor::None
Packet is successfully received on every read without any validation.
PIPacketExtractor::Header
Wait for at least header() bytes + payloadSize(), then validate header with virtual function validateHeader() and if it fail, shifts for next 1 byte. If header is successfully validated check payload with function validatePayload() and if it fail, shifts for next 1 byte. If all validations were successful raise packetReceived() event.
PIPacketExtractor::Footer
This algorithm similar to previous, but instead of header() first validate footer() at after payloadSize() bytes with function validateFooter().
PIPacketExtractor::HeaderAndFooter
Wait for at least header() bytes + footer() bytes, then validate header with virtual function validateHeader() and if it fail, shifts for next 1 byte. If header is successfully validated check footer with function validateFooter() and if it fail, shifts footer position for next 1 byte. Then validate payload and if it fail, search header again, starts from next byte of previous header. If all validations were successful raise packetReceived() event.
PIPacketExtractor::Size
Wait for at least packetSize() bytes, then validate packet with function validatePayload() and if it fail, shifts for next 1 byte. If validating was successfull raise packetReceived() event.
PIPacketExtractor::Timeout
Wait for first read, then read for timeout() milliseconds and raise packetReceived() event.

Control validating

There are three parameters:

header content
header size
payload size

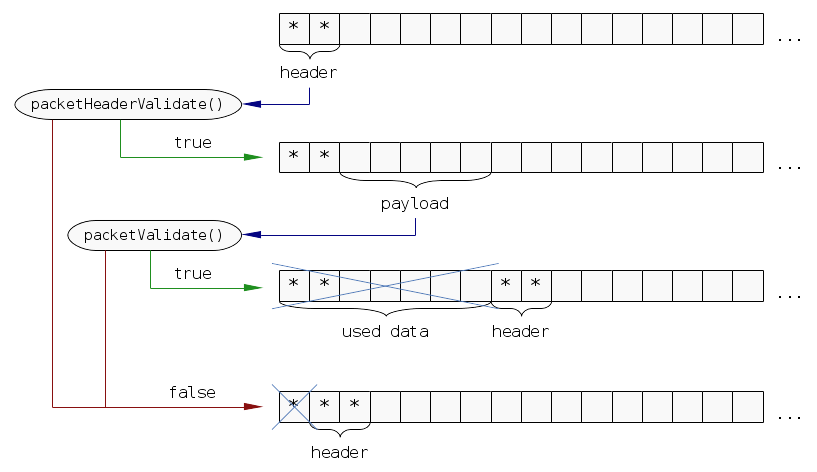

Extractor can detect packet with compare your header with readed data. It is default implementation of function packetHeaderValidate(). If header validating passed, function packetValidate() will be called. If either of this function return false extractor shifts by one byte and takes next header. If both functions returns true extractor shifts by whole packet size.

Member Enumeration Documentation

◆ SplitMode

enum PIPacketExtractor::SplitMode

Extract algorithms.

Enumerator
None	No data processing
Header	Detect packets with header() and following payloadSize()
Footer	Detect packets with footer() and leading payloadSize()
HeaderAndFooter	Detect packets with header() and footer() without payloadSize()
Size	Detect packets with packetSize()
Timeout	Wait for first read, then read for timeout() milliseconds

Member Function Documentation

◆ validateHeader()

virtual bool PIPacketExtractor::validateHeader	(	uchar *	src,
		uchar *	rec,
		int	size
	)

inlineprotectedvirtual

Function to validate header.

Parameters

src	Your header content
rec	Received header
size	Header size

Default implementation returns by-byte "src" with "rec" compare result

◆ validateFooter()

virtual bool PIPacketExtractor::validateFooter	(	uchar *	src,
		uchar *	rec,
		int	size
	)

inlineprotectedvirtual

Function to validate footer.

Parameters

src	Your footer content
rec	Received footer
size	Footer size

Default implementation returns by-byte "src" with "rec" compare result

◆ validatePayload()

virtual bool PIPacketExtractor::validatePayload	(	uchar *	rec,
		int	size
	)

inlineprotectedvirtual

Function to validate payload.

Parameters

rec	Received payload
size	payload size

Default implementation returns true

Public Types

Public Member Functions

Protected Member Functions

Events

Additional Inherited Members

Detailed Description

Synopsis

Principle of work

Algorithms

Control validating

Member Enumeration Documentation

◆ SplitMode

Member Function Documentation

◆ validateHeader()

◆ validateFooter()

◆ validatePayload()
